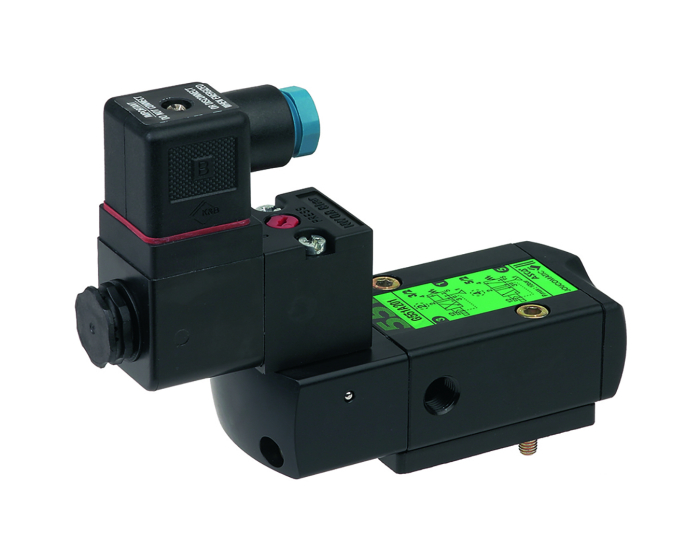

NAMUR ASCO 551 3/2-5/2 solenoid valve for driving 1/4 turn pneumatic actuators in ATEX zones 0, 20, 1, 21, 2 and 22. LISC coil, ATEX II 1G Ex ia IIC T6.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S100976 |
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| ATEX protection mode | EEx ia |
| ATEX zone | 0. 1. 2. 20. 21. 22 |
| CE_CERT | CE |
| Connector | T22 |
| Electrical connection | gland packing |
| Fluid | Air / Neutral gases / Filtered |
| In categories | Namur solenoid pilot valves |
| Body material | Aluminium |
| Kv (m³/h) | 0.6 |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 2 |
| PS (bar) | 10 |
| Pilot (NAMUR) | Asco |
| Protection index (IP) | IP 67 |
| SKU | 042835 |
| Solenoid pilot valve type | monostable |
| Solenoid pilot valve ways | 3/2 - 5/2 |
| Surface temperature | T6 |
| TS max (°C) | 60 |
| TS min (°C) | -25 |
| Voltage | 24 V DC |
| Warranty period | 1 year |
